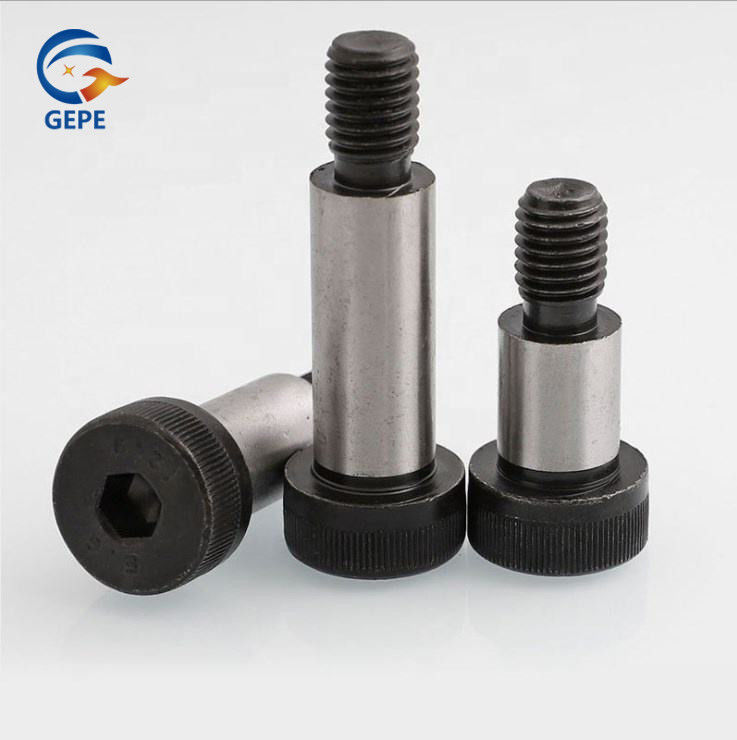

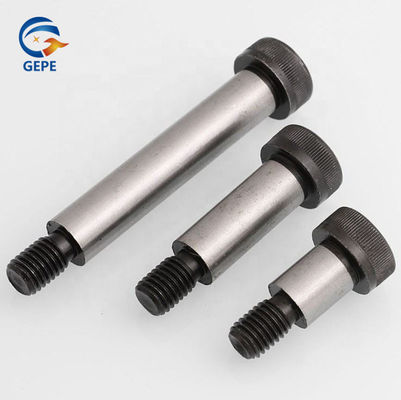

Name: M10 Shoulder Bolts Class12.9 Hex Socket Head Screw ISO 7379 Shoulder Screw
Brand: Shenzhen GEPE Technology Co., Ltd
SKU: GP SD2
Availability: InStock

Home Products Socket Head Shoulder Screw

M10 Shoulder Bolts Class12.9 Hex Socket Head Screw ISO 7379 Shoulder Screw

Product Details:

Place of Origin:	China
Brand Name:	GEPE
Certification:	R0SH
Model Number:	GP SD2

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	100~1000 Per Box
Delivery Time:	7-15days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100K per Day

Contact Now

Detailed Product Description

Finish:	Black, Black Oxide, Silver Plated, ZINC PLATED	Material:	Stainless Steel, Steel，SCM435, 33~35HRC
Measurement System:	INCH, Metric	Keyword:	Shoulder Screw
Class:	12.9 Or Other	Size:	M10
Length:	4mm~120mm	Color:	Black Or Custom
Standard:	DIN,JIS,ANSI,GB,ISO
Highlight:	M10 Shoulder Bolts , Hex Socket Head Screw ISO 7379 , ISO 7379 Shoulder Screw

Description

Saida screw has high hardness, good toughness, excellent wear resistance and heat resistance, and is suitable for precision molds, which can significantly improve its service life, especially the thermal deformation of precision molds has been effectively controlled, and it is suitable for molds in high temperature working environment. The plug screw is made of SCM435, and its hardness is 33 ~ 38 HRC.

Dimensional Drawing

M10 Shoulder Bolts Class12.9 Hex Socket Head Screw ISO 7379 Shoulder Screw 0

Size	D		A		H		D1		E	T	J
	Shoulder Diameter		Head Diameter		Head Thickness		Thread Diameter	Pitch	Thread Length	Hex Depth	Hex Size
	Max	Min	Max	Min	Max	Min	Thread Diameter	Pitch	Max	Min	Hex Size
12	11.984	11.941	18	17.73	9	8.78	M10	1.5	16.4	4.9	6
13	12.984	12.941	18	17.43	9	8.78	M10	1.5	16.4	4.9	6

Product features

materials	Stainless steel, Steel,SCM435	Thread type	Metric
hardness	33~35HRC	size	customized
Length of Rod	20, 25, 30, 35, 40, 45...90,100,110,120,130... 200mm(max.)	MOQ	Negotiation

We have standard size Shoulder Bolts, which can usually be delivered within 3 working days. If you need to customize non-standard parts, the delivery time is generally 15-20 days. For the customization of non-standard parts, please provide your drawings and indicate the requirements of size, tolerance, material and quantity, and we will provide you with preferential quotations.

Why choose us

DIN,JIS,ANSI,GB,ISO and other standard parts are in stock, and non-standard customization schemes are provided.

Your inquiry will be highly valued and answered within 24 hours. Direct supplier, manufacturing price
Professional manufacturers, advanced equipment and experienced engineers.
Compared with all other products, the quality is guaranteed and the material quality is superior.
Customer-oriented, efficient solutions to control costs for customers. Welcome OEM and ODM orders, professional R&D team. High quality and low price, each part will be given 100% quality inspection and testing.

HOW TO BUY

M10 Shoulder Bolts Class12.9 Hex Socket Head Screw ISO 7379 Shoulder Screw 1

Packing and Shipping

The Shoulder Bolts is sealed with plastic bag, which contains antirust oil, and the outside is packed with carton. As for shipping, all well-known express companies and ocean shipping companies can choose, but only EMS can be used in remote areas. Shipping terms such as EXW, FOB and CIF are available.
