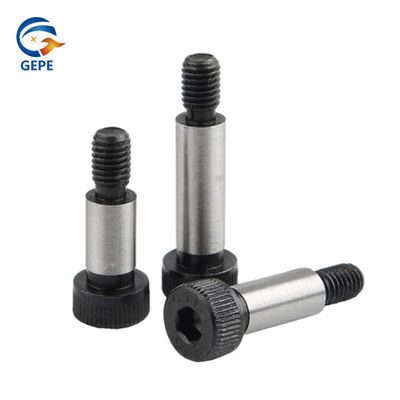

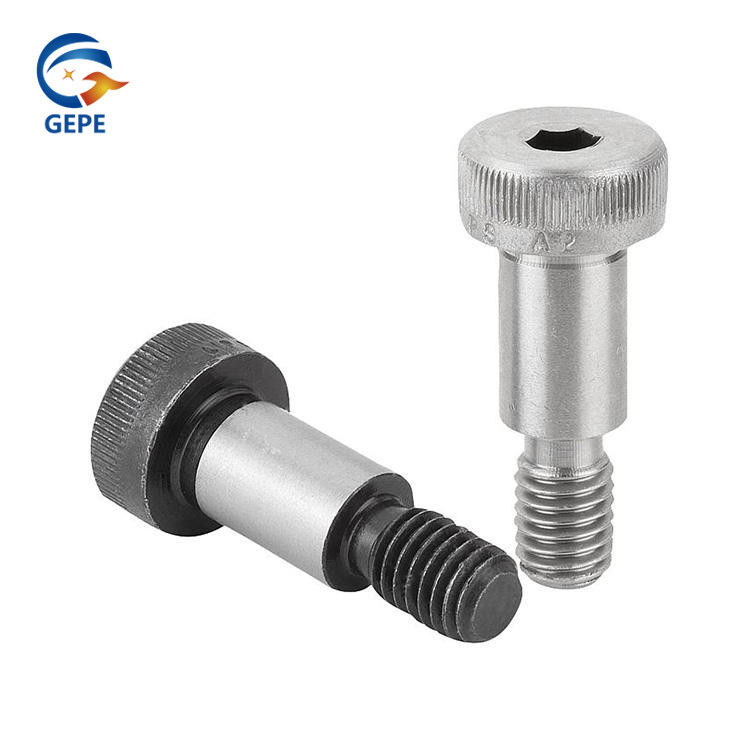

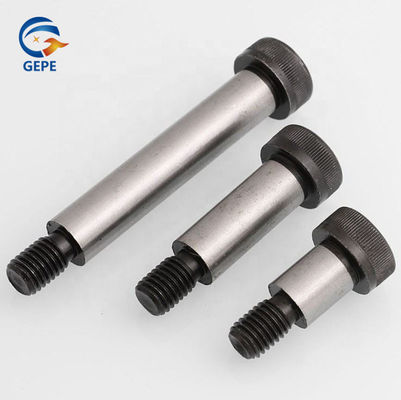

Class12.9 Hex Socket Head Shoulder Screw Non Standard M20 Shoulder Bolt

Product Details:

Place of Origin:	China
Brand Name:	GEPE
Certification:	R0SH
Model Number:	GP SD2

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	100~1000 Per Box
Delivery Time:	3-7days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100K per Day

Contact Now

Detailed Product Description

Material:	Stainless Steel, Steel，SCM435	Class:	12.9 Or Other
Size:	M20	Length:	4mm~120mm
Standard:	DIN,JIS,ANSI,GB,ISO	Hardness::	33~38HRC
Highlight:	M20 Shoulder Bolt , Hex Socket Head Shoulder Screw , Non Standard M20 Shoulder Bolt

M20 Shoulder Bolts Class12.9 Hex Socket Head Shoulder Screws ISO7379 Fasteners,Non-standard customization

Description

Shoulder screws are also called Saida screws, stop screws, stop bolts, brake bolts, etc. Plug-in screws are used in conjunction with bolt tie rods, and are mainly used to control the mold opening stroke between the fixed mold seat plate, runner push plate and fixed mold plate in three-plate mold.

Dimensional Drawing

Class12.9 Hex Socket Head Shoulder Screw Non Standard M20 Shoulder Bolt 0

Size	D		A		H		D1		E	T	J
	Shoulder Diameter		Head Diameter		Head Thickness		Thread Diameter	Pitch	Thread Length	Hex Depth	Hex Size
	Max	Min	Max	Min	Max	Min	Thread Diameter	Pitch	Max	Min	Hex Size
24.0	23.980	23.928	36.0	35.61	16.0	15.73	M20	2.50	27.40	10.0	12.0
25.0	24.980	24.928	36.0	35.61	16.0	15.73	M20	2.50	27.40	10.0	12.0

Product features

materials	Stainless steel, Steel,SCM435	Thread type	Metric
hardness	33~35HRC	size	customized
Length of Rod	20, 25, 30, 35, 40, 45...90,100,110,120,130... 200mm(max.)	MOQ	Negotiation

We have standard size Shoulder Bolts, which can usually be delivered within 3 working days. If you need to customize non-standard parts, the delivery time is generally 15-20 days. For the customization of non-standard parts, please provide your drawings and indicate the requirements of size, tolerance, material and quantity, and we will provide you with preferential quotations.

Why choose us

DIN,JIS,ANSI,GB,ISO and other standard parts are in stock, and non-standard customization schemes are provided.

Your inquiry will be highly valued and answered within 24 hours. Direct supplier, manufacturing price
Professional manufacturers, advanced equipment and experienced engineers.
Compared with all other products, the quality is guaranteed and the material quality is superior.
Customer-oriented, efficient solutions to control costs for customers. Welcome OEM and ODM orders, professional R&D team. High quality and low price, each part will be given 100% quality inspection and testing.

HOW TO BUY

Class12.9 Hex Socket Head Shoulder Screw Non Standard M20 Shoulder Bolt 1

Packing and Shipping

The Shoulder Bolts is sealed with plastic bag, which contains antirust oil, and the outside is packed with carton. As for shipping, all well-known express companies and ocean shipping companies can choose, but only EMS can be used in remote areas. Shipping terms such as EXW, FOB and CIF are available.
