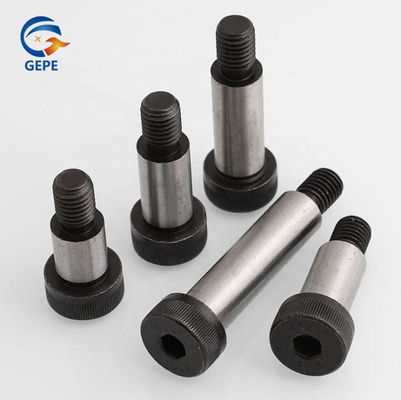

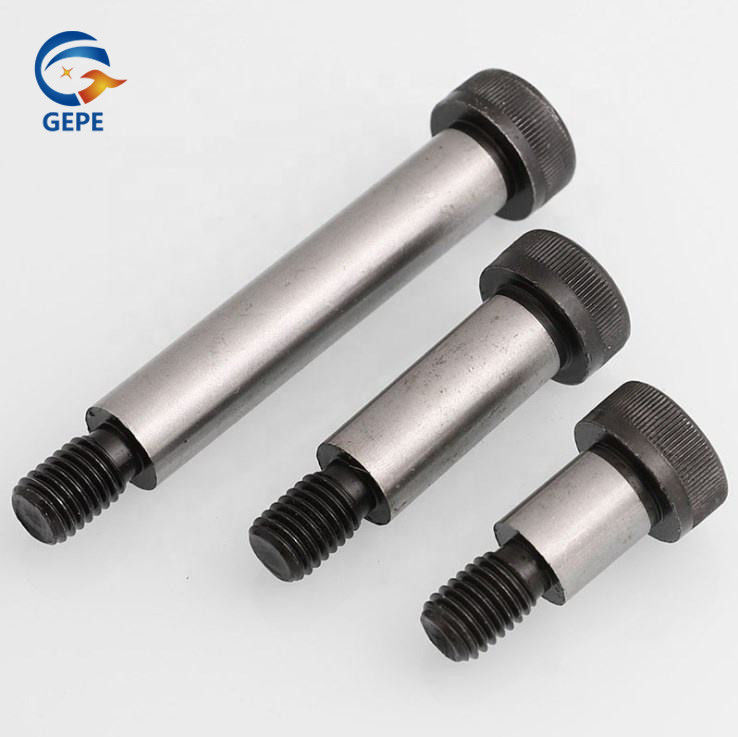

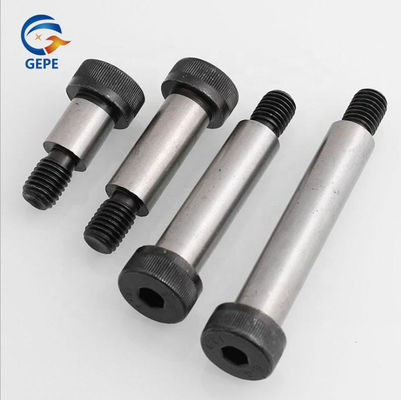

Name: SCM435 Socket Head Shoulder Screw Class 12.9 M12 Shoulder Bolts
Brand: Shenzhen GEPE Technology Co., Ltd
SKU: GP SD2
Availability: InStock

Home Products Socket Head Shoulder Screw

SCM435 Socket Head Shoulder Screw Class 12.9 M12 Shoulder Bolts

Product Details:

Place of Origin:	China
Brand Name:	GEPE
Certification:	R0SH
Model Number:	GP SD2

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	100~1000 Per Box
Delivery Time:	3-7days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100K per Day

Contact Now

Detailed Product Description

Material:	SCM435	Color:	Silver
Application:	Injection Mould	High Light::	12.9 Grade Hexagon Socket Head, SCM435 Hexagon Socket Head, M12 Shoulder Screws Rod
Name:	Socket Head Shoulder Screw
Highlight:	SCM435 Socket Head Shoulder Screw , Socket Head Shoulder Screw Class 12.9 , M12 Shoulder Bolts

Description

Hexagon head shoulder screws, also known as shoulder bolts, stripping bolts, etc, are used together with the pull rod to control the opening stroke of the three-plate mold.

Dimensional Drawing

SCM435 Socket Head Shoulder Screw Class 12.9 M12 Shoulder Bolts 0

Size	D		A		H		D1		E	T	J
	Shoulder Diameter		Head Diameter		Head Thickness		Thread Diameter	Pitch	Thread Length	Hex Depth	Hex Size
	Max	Min	Max	Min	Max	Min			Max	Min
16.0	15.984	15.941	24.0	23.67	11.0	10.73	M12	1.75	18.40	6.6	8.0

Product features

materials	Stainless steel, Steel,SCM435	application	injection mould
hardness	33~35HRC	size	customized
Length of Rod	20, 25, 30, 35, 40, 45...90,100,110,120,130... 200mm(max.)	MOQ	Negotiation

We have standard size Shoulder Bolts, which can usually be delivered within 3 working days. If you need to customize non-standard parts, the delivery time is generally 15-20 days. For the customization of non-standard parts, please provide your drawings and indicate the requirements of size, tolerance, material and quantity, and we will provide you with preferential quotations.

Why choose us

DIN,JIS,ANSI,GB,ISO and other standard parts are in stock, and non-standard customization schemes are provided.

Your inquiry will be highly valued and answered within 24 hours. Direct supplier, manufacturing price
Professional manufacturers, advanced equipment and experienced engineers.
Compared with all other products, the quality is guaranteed and the material quality is superior.
Customer-oriented, efficient solutions to control costs for customers. Welcome OEM and ODM orders, professional R&D team. High quality and low price, each part will be given 100% quality inspection and testing.

HOW TO BUY

SCM435 Socket Head Shoulder Screw Class 12.9 M12 Shoulder Bolts 1

Packing and Shipping

The Shoulder Bolts is sealed with plastic bag, which contains antirust oil, and the outside is packed with carton. As for shipping, all well-known express companies and ocean shipping companies can choose, but only EMS can be used in remote areas. Shipping terms such as EXW, FOB and CIF are available.
