Name: M6 Shoulder Bolts , ISO7379 Hex Socket Shoulder Screw Class 12.9
Brand: Shenzhen GEPE Technology Co., Ltd
SKU: GP SD2
Availability: InStock

Home Products Socket Head Shoulder Screw

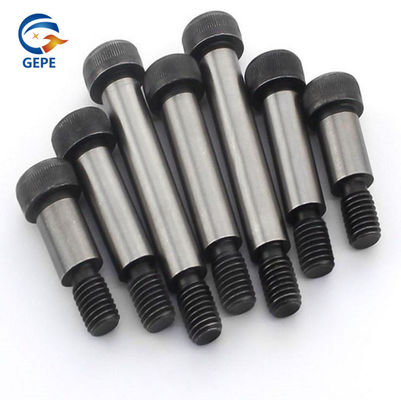

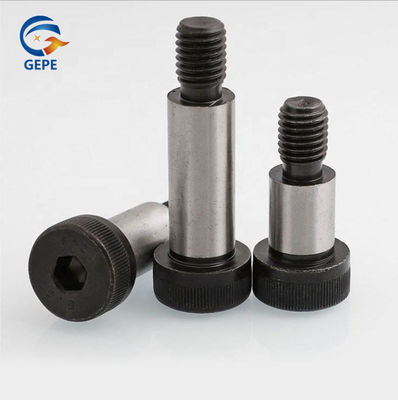

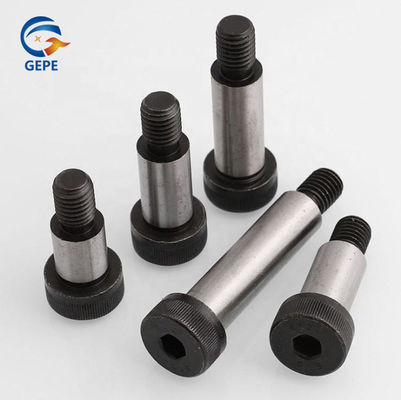

M6 Shoulder Bolts , ISO7379 Hex Socket Shoulder Screw Class 12.9

Product Details:

Place of Origin:	China
Brand Name:	GEPE
Certification:	R0SH
Model Number:	GP SD2

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	100~1000 Per Box
Delivery Time:	3-7days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100K per Day

Contact Now

Detailed Product Description

Finish:	Black, Black Oxide, Silver Plated, ZINC PLATED	Material:	Stainless Steel, Steel，SCM435, 33~35HRC
Measurement System:	INCH, Metric	Keyword:	Shoulder Screw
Class:	12.9 Or Other	Size:	M6
Length:	20mm~120mm	Color:	Black Or Custom
Standard:	DIN,JIS,ANSI,GB,ISO
Highlight:	M6 Shoulder Bolts , Hex Socket Shoulder Screw Class 12.9 , ISO7379 Hex Socket Shoulder Screw

Description

A shoulder screw is a mechanical fastener that screws into one part and provides a freely rotating pin joint connection to another part.

A shoulder screw, also called a shoulder bolt, has a shank with a larger diameter immediately below the head that “steps down” to a smaller diameter for the threaded length.

Dimensional Drawing

M6 Shoulder Bolts , ISO7379 Hex Socket Shoulder Screw Class 12.9 0

Size	D		A		H		D1		E	T	J
	Shoulder Diameter		Head Diameter		Head Thickness		Thread Diameter	Pitch	Thread Length	Hex Depth	Hex Size
	Max	Min	Max	Min	Max	Min			Max	Min
8.0	7.987	7.951	13.0	12.73	5.5	5.32	M6	1.00	11.25	3.3	4.0

Product features

materials	SCM435	Thread type	Metric
hardness	33~35HRC	size	customized
Length of Rod	20, 25, 30, 35, 40, 45...90,100,110,120,130... 200mm(max.)	Production standards	DIN7379

We have standard size Shoulder Bolts, which can usually be delivered within 3 working days. If you need to customize non-standard parts, the delivery time is generally 15-20 days. For the customization of non-standard parts, please provide your drawings and indicate the requirements of size, tolerance, material and quantity, and we will provide you with preferential quotations.

Why choose us

DIN,JIS,ANSI,GB,ISO and other standard parts are in stock, and non-standard customization schemes are provided.

Your inquiry will be highly valued and answered within 24 hours. Direct supplier, manufacturing price
Professional manufacturers, advanced equipment and experienced engineers.
Compared with all other products, the quality is guaranteed and the material quality is superior.
Customer-oriented, efficient solutions to control costs for customers. Welcome OEM and ODM orders, professional R&D team. High quality and low price, each part will be given 100% quality inspection and testing.

HOW TO BUY

Please pay attention to our minimum order quantity.
All shipping terms are available, please contact us for shipping cost.
Prices can be negotiated for bulk order,
About the payment, T/T, PayPal and WestUnion is welcome, for the bulk order , please feel free to contact us for whlesale price.

Packing and Shipping

The Shoulder Bolts is sealed with plastic bag, which contains antirust oil, and the outside is packed with carton. As for shipping, all well-known express companies and ocean shipping companies can choose, but only EMS can be used in remote areas. Shipping terms such as EXW, FOB and CIF are available.
