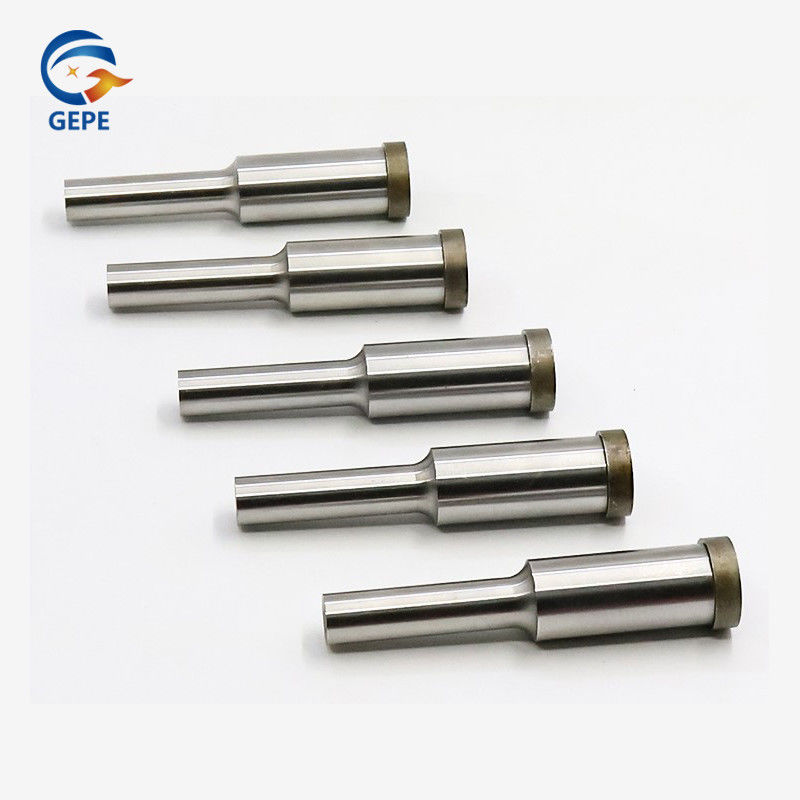

Cemented Carbide Punch Nonstandard Customized For Stamping Die

Product Details:

Place of Origin:	China
Brand Name:	GEPE
Certification:	RoHS
Model Number:	working standard

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiation
Packaging Details:	50 pieces in a PE bag and then packing by wood cartons
Delivery Time:	7~15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	80000~100000 pieces per month

Contact Now

Detailed Product Description

Material:	SKD11,SKH51,Tusten Stell,Gcr12,ASP23,SKD61	Suitable Mold:	Punching Mold
Rod Diameter Tolerance:	0.002mm	Packing:	PE Bags
Product Name:	Carbide Punch
Highlight:	Cemented Carbide Punch , Carbide Punch Nonstandard , Carbide Punch Customized

Punch For Stamping Die With Nonstandard Customization Accuracy Of 0.002mm

Name: Cemented Carbide Punch Nonstandard Customized For Stamping Die
Brand: Shenzhen GEPE Technology Co., Ltd
SKU: working standard
Availability: InStock

Description

The cemented carbide punch used in the stamping die in industrial production can make different shapes of punching rods according to the different requirements of products and process holes in batches. Especially in the complete production of progressive die sets, such as the computer case, there are many cooling holes on it, as well as mobile phones, many electrical appliances and machinery. Ordinary drilling machines, turning machines and milling machines can only process round holes, while when punching, large punching machines can process hundreds of holes at the same time.

dimensional drawing

Cemented Carbide Punch Nonstandard Customized For Stamping Die 0

H	D	T	L
2	1	5	40/50/60/70/80/90/100
4	1.5 2		40/50/60/70/80/90/100
5	2.5 3		40/50/60/70/80/90/100
6	3.5 4		40/50/60/70/80/90/100
7	4.5 5		40/50/60/70/80/90/100
8	5.5 6		40/50/60/70/80/90/100
9	6.5 7		40/50/60/70/80/90/100
10	7.5 8		40/50/60/70/80/90/100
12	8.5 9		40/50/60/70/80/90/100
12	9.5 10		40/50/60/70/80/90/100
13	11		40/50/60/70/80/90/100
14	12		40/50/60/70/80/90/100
16	13		40/50/60/70/80/90/100
17	14		40/50/60/70/80/90/100
18	15		40/50/60/70/80/90/100
19	16		40/50/60/70/80/90/100
20	17		40/50/60/70/80/90/100
21	18		40/50/60/70/80/90/100
22	19		40/50/60/70/80/90/100
23	20		40/50/60/70/80/90/100
28	25		40/50/60/70/80/90/100

Product features

Shaping Mode	Punching Mold	Product Name	Type-A Punch Pins
Product Material	SKD61,SKH51 ,SKD11 ,SKH40	Order code	HPL(T)
Rod diameter tolerance	0~+0.01	standard	JIS, AISI, ASTM, GB, DIN, EN
Non-standard customization	Available	Place of Origin	Guangdong, China

Remarks:

we have punch pins with standard dimensions of rod diameter φ1.0~φ25 in stock, which can generally be delivered within 3 working days. If you need to customize non-standard parts, the delivery time is generally 15-20 days. For the customization of non-standard parts, please give us your drawings, clearly indicate the requirements of size, tolerance, material and quantity, and then we will quote you preferential prices.

Product display

Cemented Carbide Punch Nonstandard Customized For Stamping Die 1

Why choose us

HASCO and other standard parts are in stock, and non-standard customization schemes are provided.
Your inquiry will be highly valued and answered within 24 hours. Direct supplier, manufacturing price
Professional manufacturers, advanced equipment and experienced engineers.
Compared with all other products, the quality is guaranteed and the material quality is superior.
Customer-oriented, efficient solutions to control costs for customers. Welcome OEM and ODM orders, professional R&D team. High quality and low price, each part will be given 100% quality inspection and testing.

HOW TO BUY

Cemented Carbide Punch Nonstandard Customized For Stamping Die 3

Packing and Shipping

The punch pins is sealed with plastic bag, which contains antirust oil, and the outside is packed with carton. As for shipping, all well-known express companies and ocean shipping companies can choose, but only EMS can be used in remote areas. Shipping terms such as EXW, FOB and CIF are available.
