Cr12mov / SKD11 Die Punch Pins Customized Size GB Standard

Product Details:

Place of Origin:	China
Brand Name:	GEPE
Certification:	RoHS
Model Number:	working standard

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	50 pieces in a PE bag and then packing by wood cartons
Delivery Time:	3~7 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	80000~100000 pieces per month

Contact Now

Detailed Product Description

Material:	Cr12mov/SKD11	Rod Diameter Tolerance:	0~+0.02mm
COLOR:	Silver	Size:	Customized
Standard:	GB	Name:	Punch Pins
Highlight:	SKD11 Die Punch Pins , Punch Pins Customized , Cr12mov Punch Pins

T-Shaped Punch With Arc Head Made Of Cr12mov/SKD11 Material Can Be Customized Without Standard,Guide Punch Pins

Name: Cr12mov / SKD11 Die Punch Pins Customized Size GB Standard
Brand: Shenzhen GEPE Technology Co., Ltd
SKU: working standard
Availability: InStock

Description

Die punches include high-speed steel punches and tungsten steel punches, and high-speed steel is the most commonly used material, such as CR12, CR12MOV, asp23, skd11, skd51, skd61, etc. Tungsten steel materials are generally used in punching and shearing dies with higher requirements.

dimensional drawing

Cr12mov / SKD11 Die Punch Pins Customized Size GB Standard 0

H	D	T	L
2	1	5	40/50/60/70/80/90/100
4	1.5 2		40/50/60/70/80/90/100
5	2.5 3		40/50/60/70/80/90/100
6	3.5 4		40/50/60/70/80/90/100
7	4.5 5		40/50/60/70/80/90/100
8	5.5 6		40/50/60/70/80/90/100
9	6.5 7		40/50/60/70/80/90/100
10	7.5 8		40/50/60/70/80/90/100
12	8.5 9		40/50/60/70/80/90/100
12	9.5 10		40/50/60/70/80/90/100
13	11		40/50/60/70/80/90/100
14	12		40/50/60/70/80/90/100
16	13		40/50/60/70/80/90/100
17	14		40/50/60/70/80/90/100
18	15		40/50/60/70/80/90/100
19	16		40/50/60/70/80/90/100
20	17		40/50/60/70/80/90/100
21	18		40/50/60/70/80/90/100
22	19		40/50/60/70/80/90/100
23	20		40/50/60/70/80/90/100
28	25		40/50/60/70/80/90/100

Product features

Shaping Mode	Punching Mold	Product Name	Punch Pins
Product Material	SKD61,SKH51 ,SKD11 ,SKH40	Order	Provide drawings
Rod diameter tolerance	0~+0.02	standard	JIS, AISI, ASTM, GB, DIN, EN
Non-standard customization	Available	Place of Origin	Guangdong, China

Remarks:

we have punch pins with standard dimensions of rod diameter φ1.0~φ25 in stock, which can generally be delivered within 3 working days. If you need to customize non-standard parts, the delivery time is generally 15-20 days. For the customization of non-standard parts, please give us your drawings, clearly indicate the requirements of size, tolerance, material and quantity, and then we will quote you preferential prices.

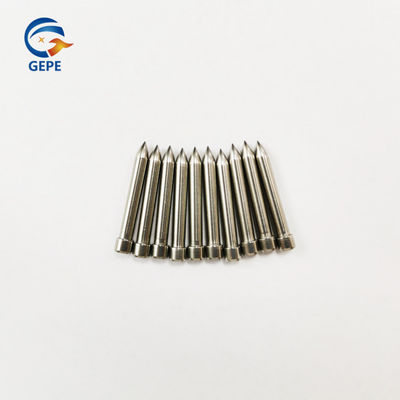

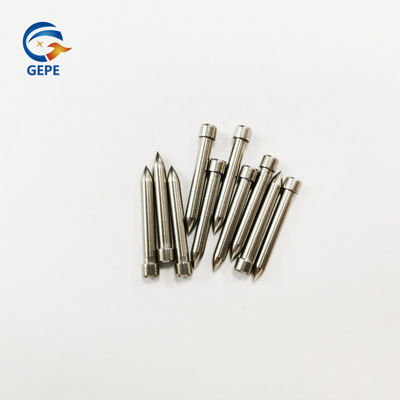

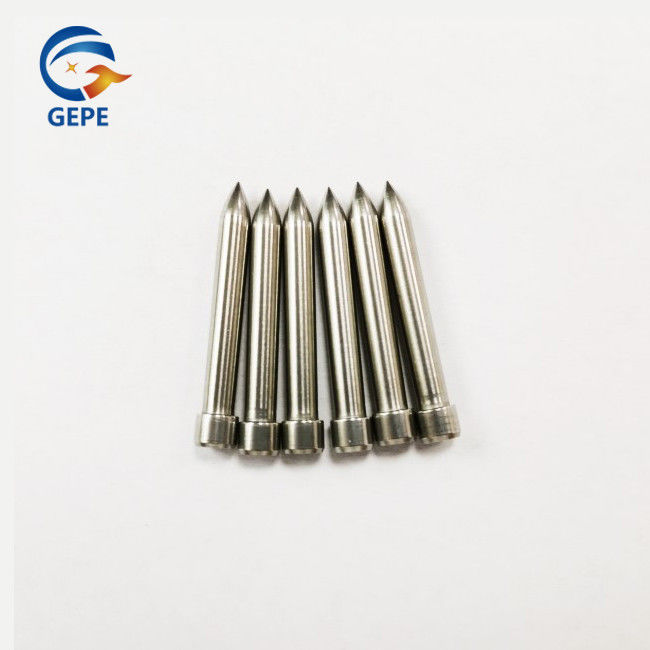

Product display

Cr12mov / SKD11 Die Punch Pins Customized Size GB Standard 1

Why choose us

HASCO and other standard parts are in stock, and non-standard customization schemes are provided.
Your inquiry will be highly valued and answered within 24 hours. Direct supplier, manufacturing price
Professional manufacturers, advanced equipment and experienced engineers.
Compared with all other products, the quality is guaranteed and the material quality is superior.
Customer-oriented, efficient solutions to control costs for customers. Welcome OEM and ODM orders, professional R&D team. High quality and low price, each part will be given 100% quality inspection and testing.

HOW TO BUY

Cr12mov / SKD11 Die Punch Pins Customized Size GB Standard 3

Packing and Shipping

The punch pins is sealed with plastic bag, which contains antirust oil, and the outside is packed with carton. As for shipping, all well-known express companies and ocean shipping companies can choose, but only EMS can be used in remote areas. Shipping terms such as EXW, FOB and CIF are available.
