RoHS Metal Ejector Pins And Sleeves Precision Mold Components

Product Details:

Place of Origin:	China
Brand Name:	GEPE
Certification:	RoHS
Model Number:	ejector sleeves L19-03

Payment & Shipping Terms:

Minimum Order Quantity:	Nagotiation
Price:	Negotiation
Packaging Details:	10~20 pieces in a PE bags,and then packing with wood caitons
Delivery Time:	10~15 work days after payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	80000~100000 pieces per month

Contact Now

Detailed Product Description

Name:	Ejector Pins And Sleeves	Shaping Mode:	Plastic Injection Mould/Compression Mould
Treatment:	Nitrided/ Vacuumed	Material:	FDAC,SKD61,SKH51
Hardness:	By Material	Standard:	HASCO Standard
Highlight:	RoHS Ejector Pins And Sleeves , Metal Precision Mold Components , Metal Ejector Pins And Sleeves

Precision Mold Components Metal Ejector Pin /Sleeves

Description

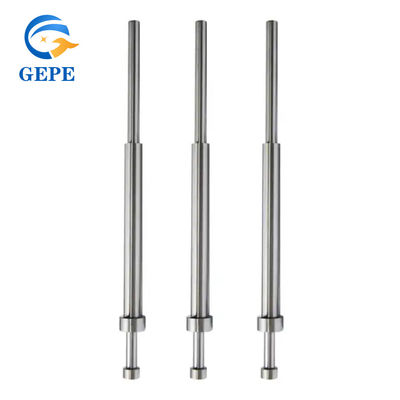

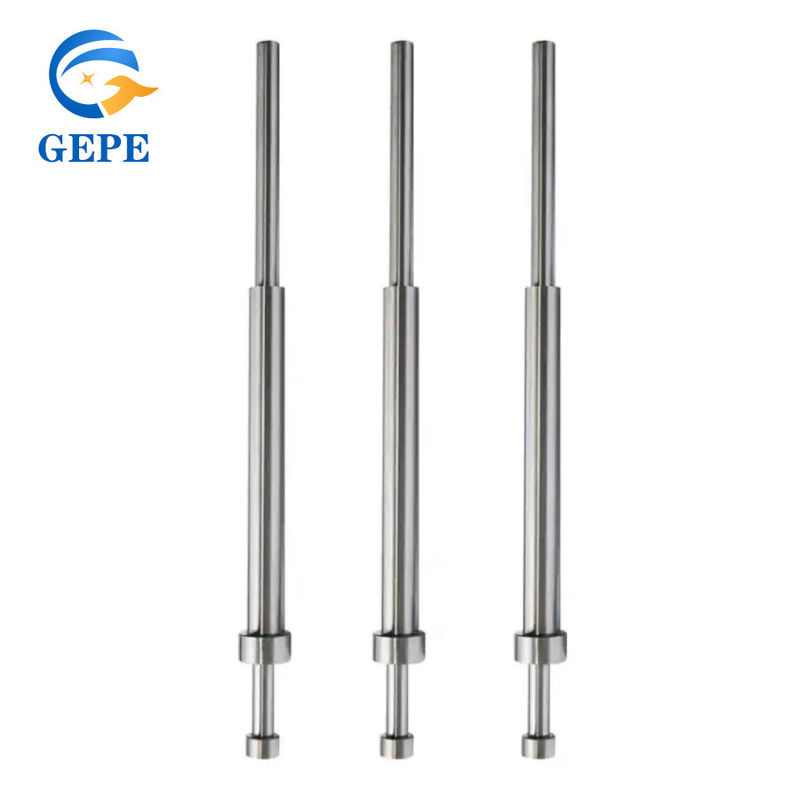

RoHS Metal Ejector Pins And Sleeves Precision Mold Components 0
The ejector sleeves is a tubular ejector used to eject the convex hole on the surface of plastic parts such as household appliance shell, which is used in conjunction with the center pin.
The convex hole part of the formed product will closely adhere to the mold due to the forming shrinkage, so the demoulding needs a large ejection force.
If only the push rod is used for ejection, the ejection force will be too large, which will lead to the phenomenon of white ejection on the surface of the molded product, and sometimes the convex hole may be broken and remain in the mold. In order to avoid the above bad situation, push tube should be used. By ejecting the end face of the convex hole part with the ejector sleeves, the whole part can be ejected smoothly. In order to improve the strength of the narrow front diameter, it is sometimes necessary to set a step at the root of the ejector sleeves
dimensional drawing
RoHS Metal Ejector Pins And Sleeves Precision Mold Components 1
Product features

Shaping Mode	Plastic Injection Mould/Compression Mould	Place of Origin	Guangdong, China
Material	FDAC,SKD61,SKH51	Treatment	Nitrided/ Vacuumed
hardness	By material	MOQ	Negotiation

According to HASCO standard, we have the following standard sizes of thimbles in stock, generally can be shipped within 3 working days, if customized thimbles, delivery time is generally 10-20 days.

Rod diameter	Diameter of HeadHeight of Head(DH)	Rod diameter	Diameter of HeadHeight of Head(DH)
0.8	2.5*1.2	5.5	10*3
1	2.5*1.2	6	12*5
1.1	2.5*1.2	6.2	12*5
1.2	2.5*1.2	6.5	12*5
1.3	3*1.5	7	12*5
1.4	3*1.5	7.5	12*5
1.5	3*1.5	8	14*5
1.6	3*1.5	8.2	14*5
1.7	3*1.5	8.5	14*5
1.8	3*1.5	9	14*5
1.9	3*1.5	10	16*5
2	4*2	10.2	16*5
2.2	4*2	10.5	16*5
2.5	5*2	11	16*5
2.7	5*2	12	18*7
3	6*3	12.2	18*7
3.2	6*3	12.5	18*7
3.5	7*3	13	20*7
3.7	7*3	14	22*7
4	8*3	14.5	22*7
4.2	8*3	16	22*7
4.5	8*3	18	24*7
5	10*3	20	26*8
5.2	10*3	25	32*10
		32	40*10

Why choose us

HASCO and other standard parts are in stock, and non-standard customization schemes are provided.

Your inquiry will be highly valued and answered within 24 hours. Direct supplier, manufacturing price
Professional manufacturers, advanced equipment and experienced engineers.
Compared with all other products, the quality is guaranteed and the material quality is superior.
Customer-oriented, efficient solutions to control costs for customers. Welcome OEM and ODM orders, professional R&D team. High quality and low price, each part will be given 100% quality inspection and testing.

HOW TO BUY
RoHS Metal Ejector Pins And Sleeves Precision Mold Components 2

Packing and Shipping
Ejector Pins And Sleeves is sealed with plastic bag, which contains antirust oil, and the outside is packed with carton. As for shipping, all well-known express companies and ocean shipping companies can choose, but only EMS can be used in remote areas. Shipping terms such as EXW, FOB and CIF are available.
