SKH51 Customized Ejector Pins And Sleeves Non Standard Full Internal And External Hardness

Product Details:

Place of Origin:	China
Brand Name:	GEPE
Certification:	RoHS
Model Number:	GP ES51

Payment & Shipping Terms:

Minimum Order Quantity:	Nagotiation
Price:	Negotiation
Packaging Details:	10~20 pieces in a PE bags,and then packing with wood caitons
Delivery Time:	10~15 work days after payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	80000~100000 pieces per month

Contact Now

Detailed Product Description

Features:	High Precision, Wear Resistance	Application:	Injection Punch Mould
Diameter:	1mm-20mm	Hardness:	HRC 58-62
Length:	10mm-200mm	Material:	SKH-51
Package:	Carton Box	Standard:	DIN 1530, JIS, AISI
Tolerance:	+/- 0.005mm	Type:	Straight Ejector Pin
Highlight:	SKH51 Ejector Pins And Sleeves , Customized Ejector Pins And Sleeves , Ejector Pin Sleeve Non Standard

Non-Standard Customized SKH51 Ejector Pins And Sleeves , Full Internal And External Hardness,High Temperature Resistance

Name: SKH51 Customized Ejector Pins And Sleeves Non Standard Full Internal And External Hardness
Brand: Shenzhen GEPE Technology Co., Ltd
SKU: GP ES51
Availability: InStock

Description

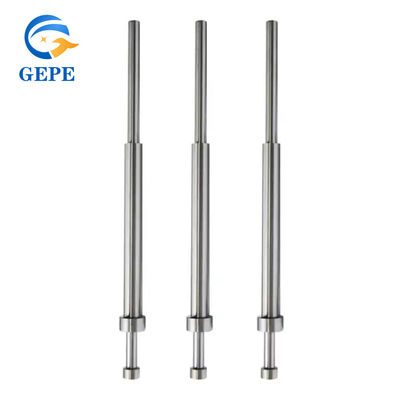

SKH51 Customized Ejector Pins And Sleeves Non Standard Full Internal And External Hardness 0
The bobbin, also known as the push tube, and its matching with the thimble is called the bobbin needle assembly, which is one of the plastic mold parts.

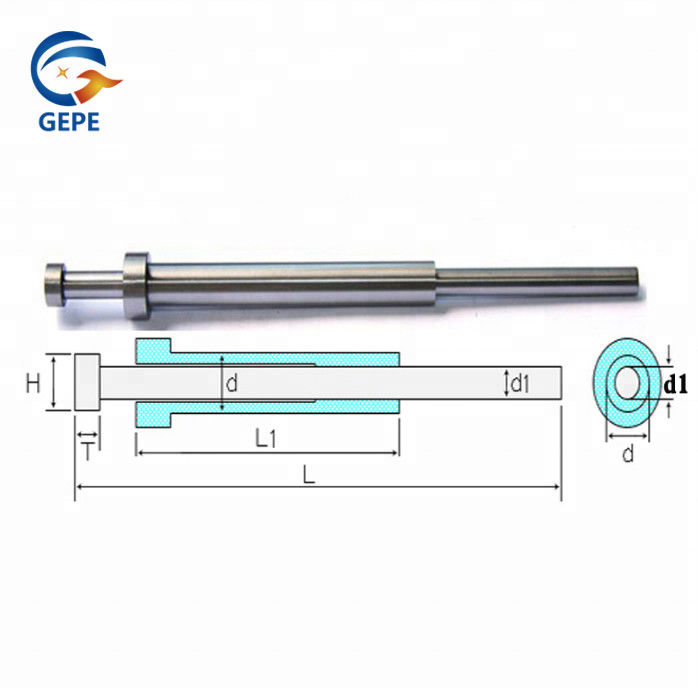

Dimensional Drawing

The material of ejector sleeves is FDAC, and the material of ejector pins is H13, with hardness of 48~52HRC, vacuum heat treatment, nitriding and hardening of the outer surface, good precision of the cylinder, precise matching, wear resistance and high temperature resistance, suitable for high-temperature plastic molds and die-casting molds, long service life and burr-free products.

Product features

Shaping Mode	Plastic Injection Mould/Compression Mould	Place of Origin	Guangdong, China
Material	SKH-51	Treatment	Vacuumed
hardness	58~62HRC	MOQ	Negotiation

According to HASCO standard, we have the following standard sizes of thimbles in stock, generally can be shipped within 3 working days, if customized thimbles, delivery time is generally 10-20 days.

Rod diameter	Diameter of HeadHeight of Head(DH)	Rod diameter	Diameter of HeadHeight of Head(DH)
0.8	2.5*1.2	5.5	10*3
1	2.5*1.2	6	12*5
1.1	2.5*1.2	6.2	12*5
1.2	2.5*1.2	6.5	12*5
1.3	3*1.5	7	12*5
1.4	3*1.5	7.5	12*5
1.5	3*1.5	8	14*5
1.6	3*1.5	8.2	14*5
1.7	3*1.5	8.5	14*5
1.8	3*1.5	9	14*5
1.9	3*1.5	10	16*5
2	4*2	10.2	16*5
2.2	4*2	10.5	16*5
2.5	5*2	11	16*5
2.7	5*2	12	18*7
3	6*3	12.2	18*7
3.2	6*3	12.5	18*7
3.5	7*3	13	20*7
3.7	7*3	14	22*7
4	8*3	14.5	22*7
4.2	8*3	16	22*7
4.5	8*3	18	24*7
5	10*3	20	26*8
5.2	10*3	25	32*10
		32	40*10

Why choose us

HASCO and other standard parts are in stock, and non-standard customization schemes are provided.

Your inquiry will be highly valued and answered within 24 hours. Direct supplier, manufacturing price
Professional manufacturers, advanced equipment and experienced engineers.
Compared with all other products, the quality is guaranteed and the material quality is superior.
Customer-oriented, efficient solutions to control costs for customers. Welcome OEM and ODM orders, professional R&D team. High quality and low price, each part will be given 100% quality inspection and testing.

HOW TO BUY

Packing and Shipping

Ejector Pins And Sleeves is sealed with plastic bag, which contains antirust oil, and the outside is packed with carton. As for shipping, all well-known express companies and ocean shipping companies can choose, but only EMS can be used in remote areas. Shipping terms such as EXW, FOB and CIF are available.
