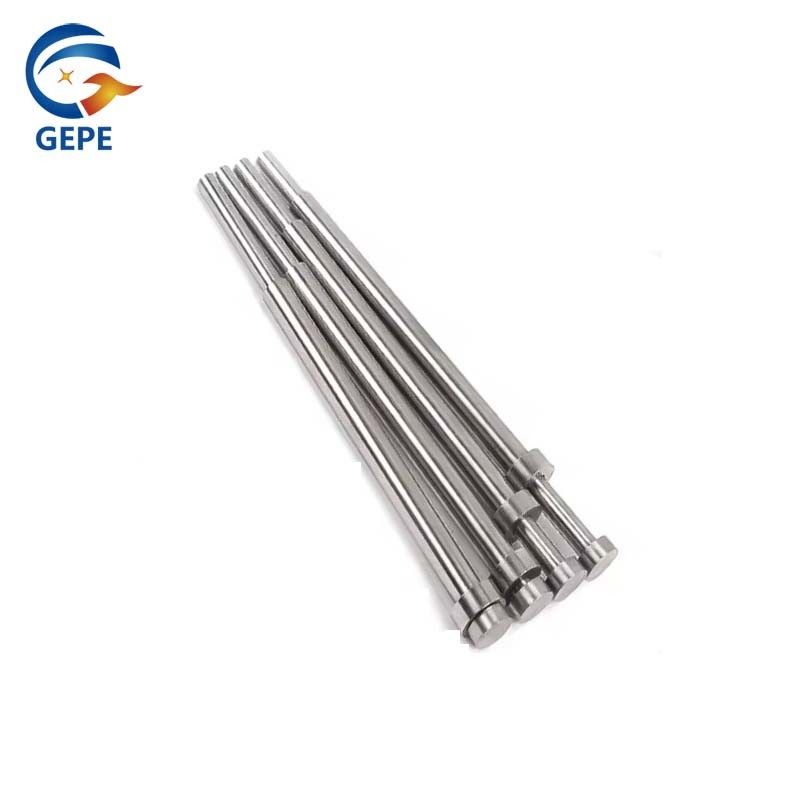

SKD61 Plastic Mold Ejector Pins And Sleeves FDAC Material

Product Details:

Place of Origin:	China
Brand Name:	GEPE
Certification:	RoHS
Model Number:	ejector sleeves L24-08

Payment & Shipping Terms:

Minimum Order Quantity:	Nagotiation
Price:	Negotiation
Packaging Details:	10~20 pieces in a PE bags,and then packing with wood caitons
Delivery Time:	10~15 work days after payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	80000~100000 pieces per month

Contact Now

Detailed Product Description

Product Name::	SKD61 Ejector Pins And Sleeves	Hardness:	External Surface 55HRC, Internal 35HRC
Materials:	SKD61	Surface Treatment:	Nitrided
Application:	Industrial,Auto;Car,Mold Components
Highlight:	Plastic Mold Ejector Pins And Sleeves , SKD61 Ejector Pins And Sleeves , FDAC Plastic Mold Ejector Pins

SKD61 Materials Fair- Price Special For Plastic Mold Of Ejector Pins And Sleeves

Name: SKD61 Plastic Mold Ejector Pins And Sleeves FDAC Material
Brand: Shenzhen GEPE Technology Co., Ltd
SKU: ejector sleeves L24-08
Availability: InStock

Description

SKD61 Plastic Mold Ejector Pins And Sleeves FDAC Material 0

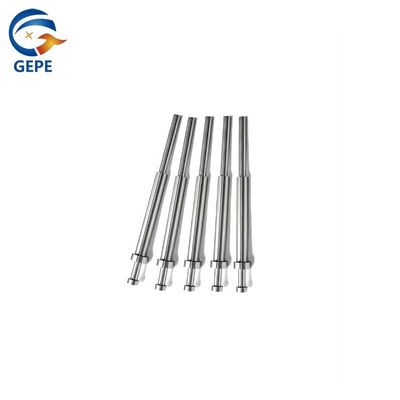

Ejection sleeve is a kind of plastic mould fitting used with thimble, which looks like a hollow thimble. When there are circular through holes or blind holes in the injected products that must be ejected, the ejection sleeve should be used.

Dimensional Drawing

The material of ejector sleeves is FDAC, and the material of ejector pins is H13, with hardness of 48~52HRC, vacuum heat treatment, nitriding and hardening of the outer surface, good precision of the cylinder, precise matching, wear resistance and high temperature resistance, suitable for high-temperature plastic molds and die-casting molds, long service life and burr-free products.

Product features

Shaping Mode	Plastic Injection Mould/Compression Mould	Place of Origin	Guangdong, China
Material	SKD61	Treatment	Nitrided/ Vacuumed
hardness	External surface 55HRC, internal 35HRC	MOQ	Negotiation

According to HASCO standard, we have the following standard sizes of thimbles in stock, generally can be shipped within 3 working days, if customized thimbles, delivery time is generally 10-20 days.

Rod diameter	Diameter of HeadHeight of Head(DH)	Rod diameter	Diameter of HeadHeight of Head(DH)
0.8	2.5*1.2	5.5	10*3
1	2.5*1.2	6	12*5
1.1	2.5*1.2	6.2	12*5
1.2	2.5*1.2	6.5	12*5
1.3	3*1.5	7	12*5
1.4	3*1.5	7.5	12*5
1.5	3*1.5	8	14*5
1.6	3*1.5	8.2	14*5
1.7	3*1.5	8.5	14*5
1.8	3*1.5	9	14*5
1.9	3*1.5	10	16*5
2	4*2	10.2	16*5
2.2	4*2	10.5	16*5
2.5	5*2	11	16*5
2.7	5*2	12	18*7
3	6*3	12.2	18*7
3.2	6*3	12.5	18*7
3.5	7*3	13	20*7
3.7	7*3	14	22*7
4	8*3	14.5	22*7
4.2	8*3	16	22*7
4.5	8*3	18	24*7
5	10*3	20	26*8
5.2	10*3	25	32*10
		32	40*10

Why choose us

HASCO and other standard parts are in stock, and non-standard customization schemes are provided.

Your inquiry will be highly valued and answered within 24 hours. Direct supplier, manufacturing price
Professional manufacturers, advanced equipment and experienced engineers.
Compared with all other products, the quality is guaranteed and the material quality is superior.
Customer-oriented, efficient solutions to control costs for customers. Welcome OEM and ODM orders, professional R&D team. High quality and low price, each part will be given 100% quality inspection and testing.

HOW TO BUY

Packing and Shipping

Ejector Pins And Sleeves is sealed with plastic bag, which contains antirust oil, and the outside is packed with carton. As for shipping, all well-known express companies and ocean shipping companies can choose, but only EMS can be used in remote areas. Shipping terms such as EXW, FOB and CIF are available.
