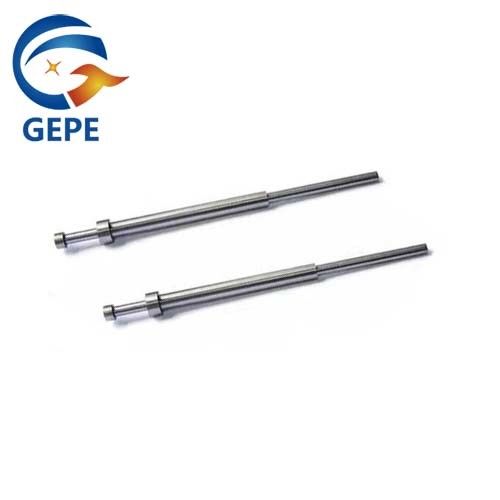

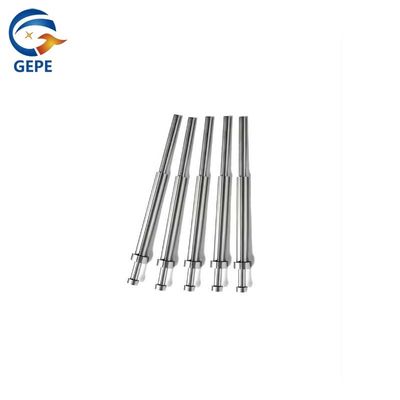

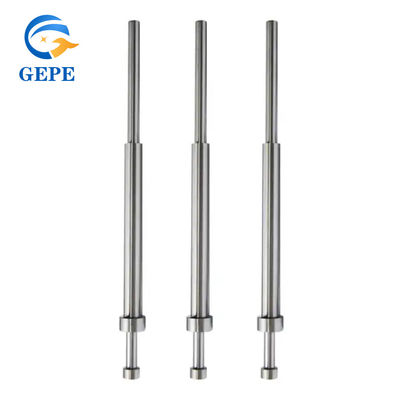

SKH51 Thin Walled Stepped Ejector Sleeves Non Standard Ejector Pins Injection Molding

Product Details:

Place of Origin:	China
Brand Name:	GEPE
Certification:	RoHS
Model Number:	ejector sleeves L24-08

Payment & Shipping Terms:

Minimum Order Quantity:	Nagotiation
Price:	Nagotiation
Packaging Details:	20 pieces in a PE bag and then packing by wood cartons
Delivery Time:	within 7 day after payment
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	80000~100000 pieces per month

Contact Now

Detailed Product Description

Material::	SKH51	Tolerance::	0.005 Mm
High Light::	Stepped Ejector Sleeves, Core Pins And Sleeves	Type::	Steped Or Straight
Hardness::	60~64°
Highlight:	Thin Walled Stepped Ejector Sleeves , SKH51 Stepped Ejector Sleeves , Non Standard Ejector Pins Injection Molding

SKH51 Material For Thin-Walled Ejection Sleeve Of Injection Mold

Name: SKH51 Thin Walled Stepped Ejector Sleeves Non Standard Ejector Pins Injection Molding
Brand: Shenzhen GEPE Technology Co., Ltd
SKU: ejector sleeves L24-08
Availability: InStock

Description

SKH51 Thin Walled Stepped Ejector Sleeves Non Standard Ejector Pins Injection Molding 0

The bobbin structure is divided into an inner needle and an outer sleeve, wherein the inner needle is used for molding and fixed on the moving die fixing plate; The sleeve of the bobbin is used for ejection and fixed on the ejector plate. When ejecting, the ejector pin plate is pushed by the fixed rod of the injection molding machine, thus driving the cylinder to eject the plastic parts from the needles in the cylinder.

Dimensional Drawing

Product features

Shaping Mode	Plastic Injection Mould/Compression Mould	Place of Origin	Guangdong, China
Material	SKH51	Treatment	Nitrided/ Vacuumed
hardness	60-64HRC	MOQ	Negotiation

According to HASCO standard, we have the following standard sizes of thimbles in stock, generally can be shipped within 3 working days, if customized thimbles, delivery time is generally 10-20 days.

Rod diameter	Diameter of HeadHeight of Head(DH)	Rod diameter	Diameter of HeadHeight of Head(DH)
0.8	2.5*1.2	5.5	10*3
1	2.5*1.2	6	12*5
1.1	2.5*1.2	6.2	12*5
1.2	2.5*1.2	6.5	12*5
1.3	3*1.5	7	12*5
1.4	3*1.5	7.5	12*5
1.5	3*1.5	8	14*5
1.6	3*1.5	8.2	14*5
1.7	3*1.5	8.5	14*5
1.8	3*1.5	9	14*5
1.9	3*1.5	10	16*5
2	4*2	10.2	16*5
2.2	4*2	10.5	16*5
2.5	5*2	11	16*5
2.7	5*2	12	18*7
3	6*3	12.2	18*7
3.2	6*3	12.5	18*7
3.5	7*3	13	20*7
3.7	7*3	14	22*7
4	8*3	14.5	22*7
4.2	8*3	16	22*7
4.5	8*3	18	24*7
5	10*3	20	26*8
5.2	10*3	25	32*10
		32	40*10

Why choose us

HASCO and other standard parts are in stock, and non-standard customization schemes are provided.

Your inquiry will be highly valued and answered within 24 hours. Direct supplier, manufacturing price
Professional manufacturers, advanced equipment and experienced engineers.
Compared with all other products, the quality is guaranteed and the material quality is superior.
Customer-oriented, efficient solutions to control costs for customers. Welcome OEM and ODM orders, professional R&D team. High quality and low price, each part will be given 100% quality inspection and testing.

HOW TO BUY

Packing and Shipping

Ejector Pins And Sleeves is sealed with plastic bag, which contains antirust oil, and the outside is packed with carton. As for shipping, all well-known express companies and ocean shipping companies can choose, but only EMS can be used in remote areas. Shipping terms such as EXW, FOB and CIF are available.
