Mold Guide Pins And Bushings Precision Guide Sleeve RoHS certified

Product Details:

Place of Origin:	China
Brand Name:	GEPE
Certification:	RoHS
Model Number:	GP-DZDT

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	10 pieces in a PE bag and then packing by wood cartons
Delivery Time:	10~15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 pieces per week

Contact Now

Detailed Product Description

Shaping Mode:	Punching Mold	Place Of Origin:	Shenzhen City, Guangdong Province, China
Model Number:	Guide Components	Product Material:	SUJ2/20cr/45#/SS400
Standard:	DME, HASCO,MISUMI, PUNCH,IEM,DANLY, Lmina , FIBRO	Hardness:	HRC58-62
Customized:	Available	Inspection:	100% Before Shipment
Highlight:	Mold Guide Pins And Bushings , RoHS Guide Pin And Bushing , Precision Guide Sleeve

Long-Life Precision Guide Sleeve For Punching Mold,MaterialSUJ2/20cr/45#/SS400

Name: Mold Guide Pins And Bushings Precision Guide Sleeve RoHS certified
Brand: Shenzhen GEPE Technology Co., Ltd
SKU: GP-DZDT
Availability: InStock

Description

The guide bushing is a guiding part used in the mold and matched with the guide pillar , which plays a guiding role. Generally, it is used in occasions with high precision requirements for molds. If it is used together with fine positioning parts (taper fine positioning pin, quick taper fine positioning, etc.), the alignment and positioning of the cavity will be more precise.

dimensional drawing

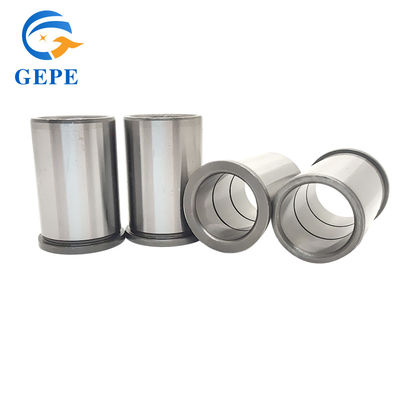

Mold Guide Pins And Bushings Precision Guide Sleeve RoHS certified 0

Type	Ød	Ød1	ØD	L
Type	(-0.005~0)	(0~0.01)	ØD	L
GA	10	14	17	15/20/22/25/30/35/40/45
	12	17	20	15/20/22/25/30/35/40/45/50
	14	19	22	15/20/22/25/30/35/40/45/50
	16	22	25	15/20/22/25/30/35/40/45/50
	18	23	26	15/20/22/25/30/35/40/45/50
	20	25	28	15/20/22/25/30/35/40/45/50
	25	32	35	15/20/22/25/30/35/40/45/50

Product features

Product Name	Punching Mold Guide Bushings	Material	20CR,40CR,SUJ2,SKD11
Hardness	HRC54-56,HRC58-60	Heat treatment method	High frequency quenching, vacuum heat treatment, quenching and tempering treatment
production address	ShenZhen,GuangDong,China	Size	Customized Size
Standard	Standard Hardware/ Plastic Parts as per MISUMI, DME, HASCO, FIBRO, CUMSA, STRACK, DAYTON NON-Standard parts can be designed or made customized

Remarks

We have standard parts in stock. Please refer to the size table above. Generally, the goods can be delivered within 3 working days. If you need to customize non-standard parts, the delivery time is generally 15-20 days. For the customization of non-standard parts, please give us your drawings, clearly indicating the requirements of size, tolerance, material and quantity, and then we will quote you a preferential price.

Product display

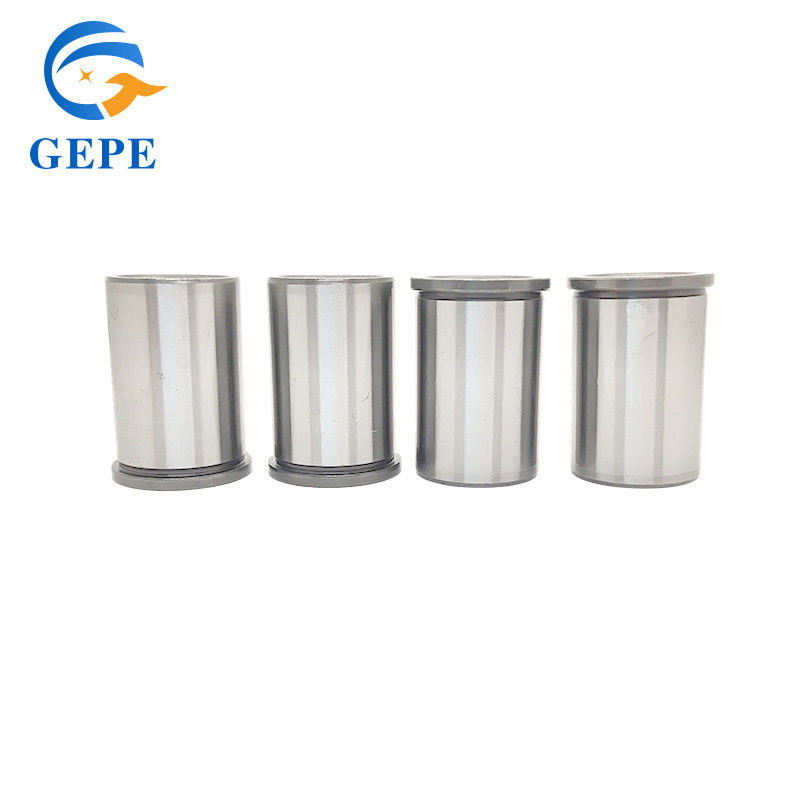

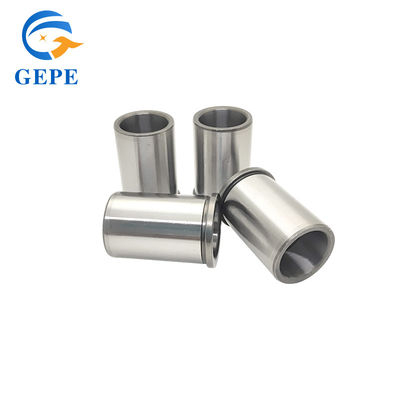

Mold Guide Pins And Bushings Precision Guide Sleeve RoHS certified 1

Why choose us

Quick Response

Your inquiry will be replied within 24 hours.

High Quality

Well-trained workers and more than 10 years experience.

Competitive Price

Directly from factory to save your money.

Short Lead Time

Being efficient:3-7 days for samples and 10-35 days for quantity orders.

Flexibility

Small orders are acceptable for quick delivery and to help you reduce stock cost.

Custom fabrication according to your drawings ,samples or designs.

HOW TO BUY

Mold Guide Pins And Bushings Precision Guide Sleeve RoHS certified 5

Packing and Shipping

Products are packed in plastic shells and outside in cartons. As for shipping, all well-known express delivery companies and ocean shipping companies can choose, but only EMS can be used in remote areas. Terms of shipment, such as EXW, FOB and CIF, are available.
