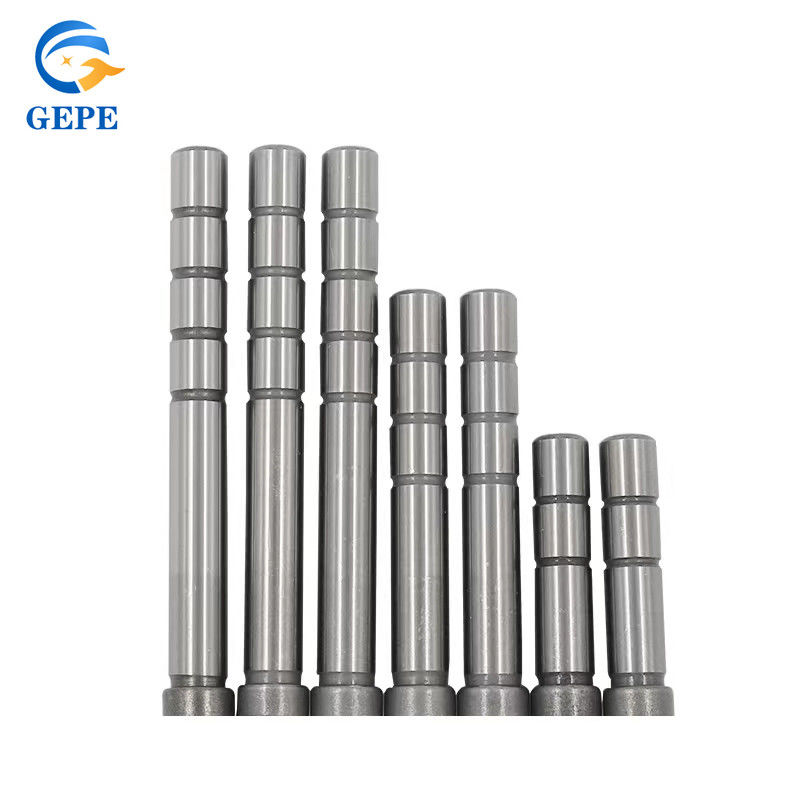

Bearing Steel Guide Pin And Bushing HRC56-62 For Guide Pillar Shoulder DME Standard

Product Details:

Place of Origin:	China
Brand Name:	GEPE
Certification:	RoHS
Model Number:	GP-DZDT

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	10 pieces in a PE bag and then packing by wood cartons
Delivery Time:	10~15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 pieces per week

Contact Now

Detailed Product Description

Materials::	Bearing Steel	Tolerance::	0.005
Hardness:	HRC56-62	OEM / ODM:	Welcome
Size:	DME Standard
Highlight:	Bearing Steel Guide Pin And Bushing , Guide Pin And Bushing HRC56 , DME Standard Guide Pin And Bushing

Custom Tolerance 0.005 Guide Pin And Bushing For Guide Pillar Shoulder

Name: Bearing Steel Guide Pin And Bushing HRC56-62 For Guide Pillar Shoulder DME Standard
Brand: Shenzhen GEPE Technology Co., Ltd
SKU: GP-DZDT
Availability: InStock

Description

Guide pins are generally made of high-hardness materials such as high-speed steel, tungsten steel and cemented carbide, which are used to guide the position of the workpiece to ensure accurate blanking of the workpiece. Guide pin is a kind of common mould parts, and its precision is very high.

dimensional drawing

Bearing Steel Guide Pin And Bushing HRC56-62 For Guide Pillar Shoulder DME Standard 0

Type	Ød	Ød1		L1	ØD	L
Type	(-0.015~-0.010)	measure	tolerance	L1	ØD	L
GP	10	10	0.015 +0.010	19	12	40/50/60/70/80/90/100/110/120
	12	12			14	40/50/60/70/80/90/100/110/120/130/140/150
	14	14			16	40/50/60/70/80/90/100/110/120/130/140/150
	16	16			18	40/50/60/70/80/90/100/110/120/130/140/150
	18	18			20	40/50/60/70/80/90/100/110/120/130/140/150
	20	20	0.02 +0.015	24	22	40/50/60/70/80/90/100/110/120/130/140/150
	22	22			24	40/50/60/70/80/90/100/110/120/130/140/150
	25	25			28	40/50/60/70/80/90/100/110/120/130/140/150

Product features

Product Name	Punching Mold Guide Pillar	Material	20CR,40CR,SUJ2,SKD11
Hardness	HRC54-56,HRC58-60	Heat treatment method	High frequency quenching, vacuum heat treatment, quenching and tempering treatment
production address	ShenZhen,GuangDong,China	Tolerance	0.005mm
Standard	Standard Hardware/ Plastic Parts as per MISUMI, DME, HASCO, FIBRO, CUMSA, STRACK, DAYTON NON-Standard parts can be designed or made customized

Remarks

We have standard parts in stock. Please refer to the size table above. Generally, the goods can be delivered within 3 working days. If you need to customize non-standard parts, the delivery time is generally 15-20 days. For the customization of non-standard parts, please give us your drawings, clearly indicating the requirements of size, tolerance, material and quantity, and then we will quote you a preferential price.

Product display

Bearing Steel Guide Pin And Bushing HRC56-62 For Guide Pillar Shoulder DME Standard 1

Why choose us

Quick Response

Your inquiry will be replied within 24 hours.

High Quality

Well-trained workers and more than 10 years experience.

Competitive Price

Directly from factory to save your money.

Short Lead Time

Being efficient:3-7 days for samples and 10-35 days for quantity orders.

Flexibility

Small orders are acceptable for quick delivery and to help you reduce stock cost.

Custom fabrication according to your drawings ,samples or designs.

HOW TO BUY

Bearing Steel Guide Pin And Bushing HRC56-62 For Guide Pillar Shoulder DME Standard 4

Packing and Shipping

Products are packed in plastic shells and outside in cartons. As for shipping, all well-known express delivery companies and ocean shipping companies can choose, but only EMS can be used in remote areas. Terms of shipment, such as EXW, FOB and CIF, are available.
