HRC58-HRC62 Guide Pillar And Guide Bush , Punching Mold Guide Sleeve

Product Details:

Place of Origin:	China
Brand Name:	GEPE
Certification:	RoHS
Model Number:	GP-DZDT

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	10 pieces in a PE bag and then packing by wood cartons
Delivery Time:	10~15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 pieces per week

Contact Now

Detailed Product Description

Shaping Mode:	Punching Mold	Place Of Origin:	Shenzhen City, Guangdong Province, China
Model Number:	Guide Components	Product Material:	SUJ2/20cr/45#/SS400
Standard:	DME, HASCO,MISUMI, PUNCH,IEM,DANLY, Lmina , FIBRO	Hardness:	HRC58-62
Customized:	Available	Inspection:	100% Before Shipment
Highlight:	HRC62 Guide Pillar And Guide Bush , Mold Guide Pillar And Bush , Punching Mold Guide Sleeve

Precision High-Hardness Guide Pillar And Guide Sleeve For Punching Mold, Standard Specification

Name: HRC58-HRC62 Guide Pillar And Guide Bush , Punching Mold Guide Sleeve
Brand: Shenzhen GEPE Technology Co., Ltd
SKU: GP-DZDT
Availability: InStock

Description

The guide bush is a kind of mold parts, which is used together with the guide pins to guide and ensure the accuracy of the movement. In the inner cylindrical surface usually has oil grooves, the quantity depend on the length of the guide bush.

dimensional drawing

HRC58-HRC62 Guide Pillar And Guide Bush , Punching Mold Guide Sleeve 0

Type	Ød	Ød1		L1	ØD	L
Type	(-0.015~-0.010)	measure	tolerance	L1	ØD	L
GP	10	10	0.015 +0.010	19	12	40/50/60/70/80/90/100/110/120
	12	12			14	40/50/60/70/80/90/100/110/120/130/140/150
	14	14			16	40/50/60/70/80/90/100/110/120/130/140/150
	16	16			18	40/50/60/70/80/90/100/110/120/130/140/150
	18	18			20	40/50/60/70/80/90/100/110/120/130/140/150
	20	20	0.02 +0.015	24	22	40/50/60/70/80/90/100/110/120/130/140/150
	22	22			24	40/50/60/70/80/90/100/110/120/130/140/150
	25	25			28	40/50/60/70/80/90/100/110/120/130/140/150

HRC58-HRC62 Guide Pillar And Guide Bush , Punching Mold Guide Sleeve 1

Type	Ød	Ød1	ØD	L
Type	(-0.005~0)	(0~0.01)	ØD	L
GA	10	14	17	15/20/22/25/30/35/40/45
	12	17	20	15/20/22/25/30/35/40/45/50
	14	19	22	15/20/22/25/30/35/40/45/50
	16	22	25	15/20/22/25/30/35/40/45/50
	18	23	26	15/20/22/25/30/35/40/45/50
	20	25	28	15/20/22/25/30/35/40/45/50
	25	32	35	15/20/22/25/30/35/40/45/50

Product features

Product Name	Punching Mold Guide Pillar and sleeve	Material	20CR,40CR,SUJ2,SKD11
Hardness	HRC54-56,HRC58-60	Heat treatment method	High frequency quenching, vacuum heat treatment, quenching and tempering treatment
production address	ShenZhen,GuangDong,China	Size	Customized Size
Standard	Standard Hardware/ Plastic Parts as per MISUMI, DME, HASCO, FIBRO, CUMSA, STRACK, DAYTON NON-Standard parts can be designed or made customized

Remarks

We have standard parts in stock. Please refer to the size table above. Generally, the goods can be delivered within 3 working days. If you need to customize non-standard parts, the delivery time is generally 15-20 days. For the customization of non-standard parts, please give us your drawings, clearly indicating the requirements of size, tolerance, material and quantity, and then we will quote you a preferential price.

Product display

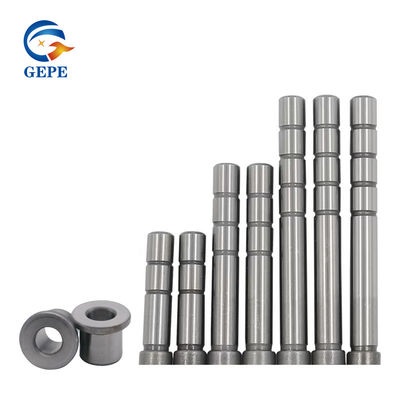

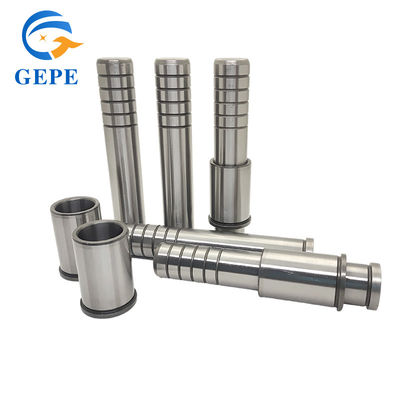

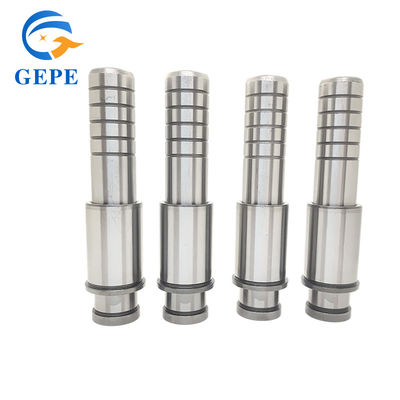

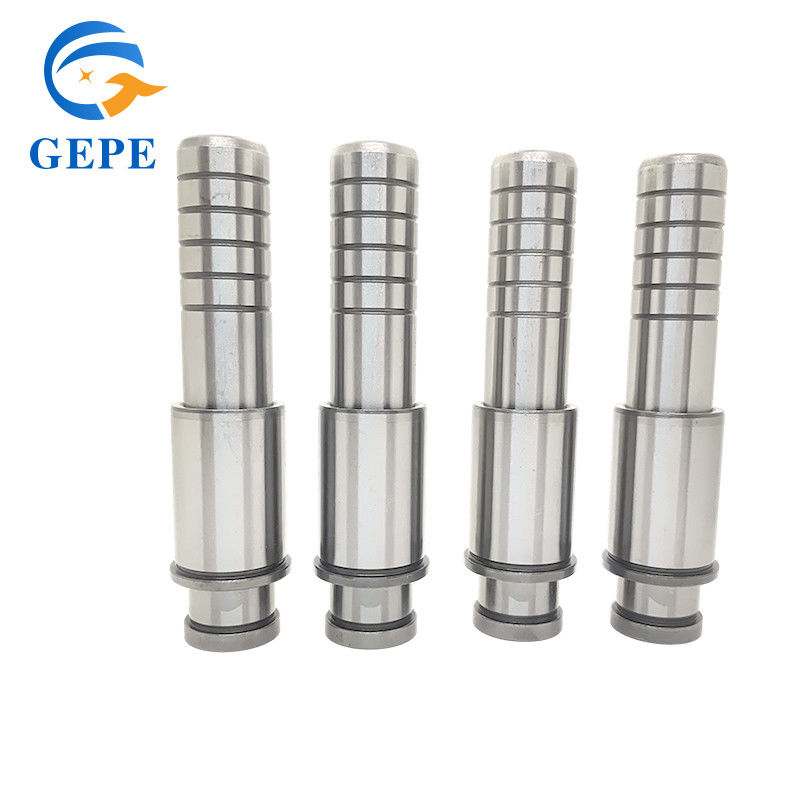

HRC58-HRC62 Guide Pillar And Guide Bush , Punching Mold Guide Sleeve 2
