High-Quality Guide Pillar For Plastic Injection Mold, Standard Specification Or Non-Standard Customization
Description
The guide pillar is a guiding part used in the mold and matched with the guide sleeve, which plays a guiding role. Generally, it is used in occasions with high precision requirements for molds. If it is used together with fine positioning parts (taper fine positioning pin, quick taper fine positioning, etc.), the alignment and positioning of the cavity will be more precise.
The guide pin is usually made of bearing steel and die steel. Bearing steel GCr15 is a kind of high-carbon chromium bearing steel, which has high hardness, uniformity and wear resistance after quenching and hardening. It is the most widely used bearing steel because of its ability to harden to HRC55 and high carbon wear resistance. High hardness, wear resistance but not high temperature resistance, suitable for various bearing rings and rolling elements. It is also used to manufacture molds and measuring tools, including guide pins and ejector pins of various molds.
dimensional drawing
Product features
| Product Name |
Plastic mould
Guide Pillar |
Material |
GCr15/SUJ2 |
| Hardness |
HRC50~55 |
Heat treatment method |
High frequency quenching |
| production address |
ShenZhen,GuangDong,China |
Size |
Customized Size |
| Standard |
Standard Hardware/ Plastic Parts as per MISUMI, DME, HASCO, FIBRO, CUMSA, STRACK, DAYTON NON-Standard parts can be designed or
made customized |
Remarks
We have standard parts in stock. Please refer to the size table above. Generally, the goods can be delivered within 3 working days. If you need to customize non-standard parts, the delivery time is generally 15-20 days. For the customization of non-standard parts, please give us your drawings, clearly indicating the requirements of size, tolerance, material and quantity, and then we will quote you a preferential price.

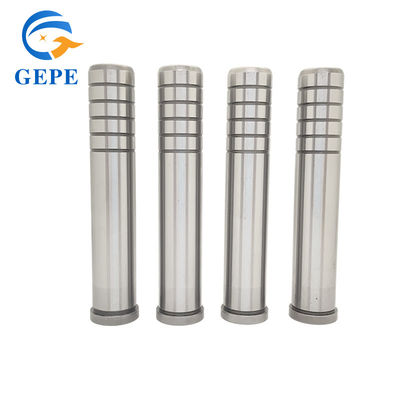

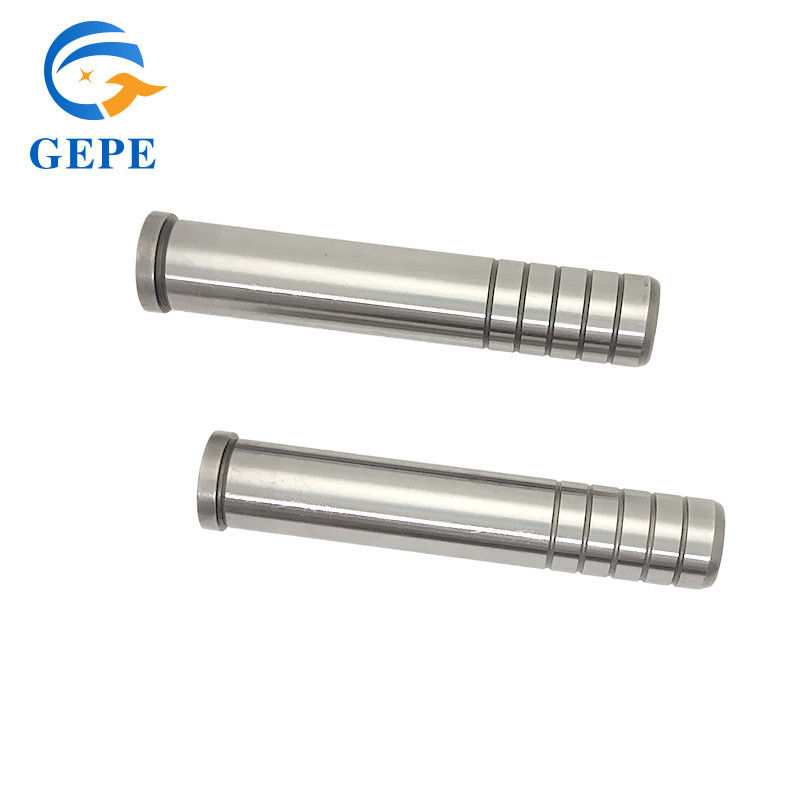

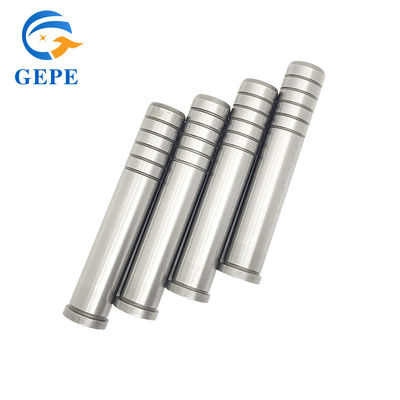

Product display
Why choose us
Your inquiry will be replied within 24 hours.
Well-trained workers and more than 10 years experience.
Directly from factory to save your money.
Being efficient:3-7 days for samples and 10-35 days for quantity orders.
Small orders are acceptable for quick delivery and to help you reduce stock cost.
Custom fabrication according to your drawings ,samples or designs.
HOW TO BUY
Packing and Shipping
Products are packed in plastic shells and outside in cartons. As for shipping, all well-known express delivery companies and ocean shipping companies can choose, but only EMS can be used in remote areas. Terms of shipment, such as EXW, FOB and CIF, are available.
